What are the fittings of UPVC pipes?

UPVC drainage fittings are essential supporting components for complete building drainage systems. Matched with UPVC pipes in raw materials, production technology and overall performance, these fittings feature unified flame retardancy, corrosion resistance, aging resistance and excellent sealing properties. Manufactured through extrusion and injection molding with high-quality rigid PVC resin, the fittings come in complete specifications with strong compatibility, perfectly fitting mainstream pipe diameters of 50mm, 75mm, 110mm and 160mm. They are widely used for pipe connection, turning, branching, diameter conversion, end sealing, maintenance and fixing, serving as core accessories to ensure unobstructed, leak-proof, clog-resistant, low-noise and long-lasting drainage systems. Standard and reasonable matching of UPVC drainage pipe fittings realizes a scientific and standardized drainage layout for buildings and fully complies with national construction water supply and drainage acceptance standards.

UPVC drainage fittings cover a complete range of functional categories, divided into seven major types according to construction functions: connection fittings, turning fittings, branching fittings, reducing fittings, maintenance fittings, sealing fittings and fixed auxiliary fittings, covering the whole process of indoor and outdoor drainage installation. Connection fittings are mainly straight couplings (pipe sleeves), used for linear extension of pipes with the same diameter. With flat and closely fitted interfaces, they achieve excellent sealing effect after bonding with professional PVC glue, effectively preventing water seepage and falling off, and are the basic accessories for pipe extension construction.

1. Turning Fittings

Turning fittings mainly include 90-degree elbows, 45-degree elbows and large-radius elbows. 90-degree elbows are suitable for right-angle turning scenarios such as wall corners and vertical floor transitions. 45-degree elbows provide gentle drainage transition, reduce water flow impact and lower the risk of pipe blockage. Large-radius elbows feature minimal water flow resistance and outstanding noise reduction performance. They are widely used in high-rise buildings and silent drainage projects to effectively reduce water hammer noise and relieve negative pressure inside pipes.

2. Branching Fittings

Tees and crosses are core branching fittings for converging and diverging multiple drainage pipelines, including equal-diameter tees, reducing tees, oblique tees and three-dimensional crosses. Compared with ordinary straight tees, oblique tees and Y-type tees deliver smoother water diversion, avoid water accumulation and sediment deposition, and greatly reduce blockage risks, making them ideal for multi-pipe drainage in kitchens and bathrooms. Cross fittings support four-way pipe connection, suitable for complex piping layouts and multi-point drainage in commercial and large-scale construction projects.

3. Reducing Fittings

Reducing fittings include reducers (concentric reducers) and reducing elbows, designed for smooth transition between pipes of different diameters. They solve the mismatch between main pipes and branch pipes, such as 160mm main pipe switching to 110mm branch pipe and 110mm main pipe switching to 75mm branch pipe. These fittings ensure natural and stable water flow transition and prevent water accumulation, backflow and blockage caused by sudden pipe diameter changes.

4. Maintenance & Sealing Fittings

Maintenance and sealing fittings consist of cleanout openings, pipe caps and pipe plugs. Cleanout openings are installed at key pipeline nodes, low points and turning positions, allowing convenient regular cleaning and daily maintenance to prevent long-term sediment accumulation and pipe blockage. Pipe caps and plugs are used to seal pipe ends, blocking sediment, dust and construction debris from entering the pipes and keeping the interior clean and unobstructed. In addition, water traps are essential functional accessories, classified into P-type and S-type. They form a stable water seal layer to effectively isolate sewer odor, insects and peculiar smell backflow, which is indispensable for deodorization of kitchen and bathroom drainage systems.

5. Fixing Fittings

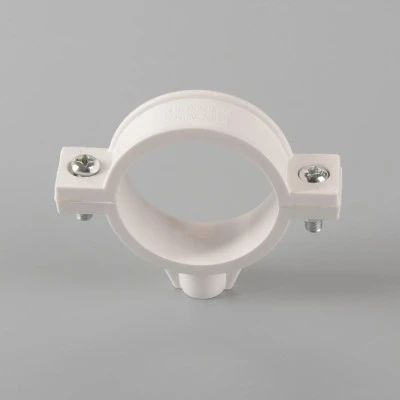

Fixed auxiliary fittings include pipe clamps, hanging clamps and support brackets, specially used for positioning and fixing ceiling pipelines, vertical pipes and horizontal pipes. They prevent pipeline shaking, displacement and loosening caused by long-term water flow impact, greatly improving the overall stability and service life of the drainage system. In general, UPVC drainage pipe fittings feature consistent performance, standard specifications and strong universality. Proper matching during construction can effectively improve drainage efficiency, eliminate leakage risks, reduce drainage noise and facilitate later maintenance, becoming the standard supporting solution for modern residential and engineering drainage systems.
